220V / 380V Voltage Fruit Processing Machine 2 - 10kw Power Hammer Type Crusher

Name: 220V 380V Voltage Fruit Processing Machine 2 10kw Power Hammer Type Crusher
Brand: Beyond
Price: 15 USD

220V / 380V Voltage Fruit Processing Machine 2 - 10kw Power Hammer Type Crusher Manufactures

Brand Name : Beyond

Model Number : 2TPH-20TPH

Certification : ISO9001

Place of Origin : Shanghai,China

MOQ : 1 set

Price : $15,000.00 / Piece

Payment Terms : L/C, T/T

Delivery Time : 30 work days

Packaging Details : Wooden case and frameworks;contaier lading;Standard export package

Output product name : Fruit and vegetables slices

Voltage : 220V/380V

Power(W) : 2-10kw

Dimension(L*W*H) : 1000*800*600mm

Weight : 100-300kg

After-sales Service : Online support

Application fields : Fruit processing plant, Vegetable processing plant, Beverage Factory

Machinery Function : Crushing cutting grinding

Raw material : Fruit, Vegetables

Contact Now

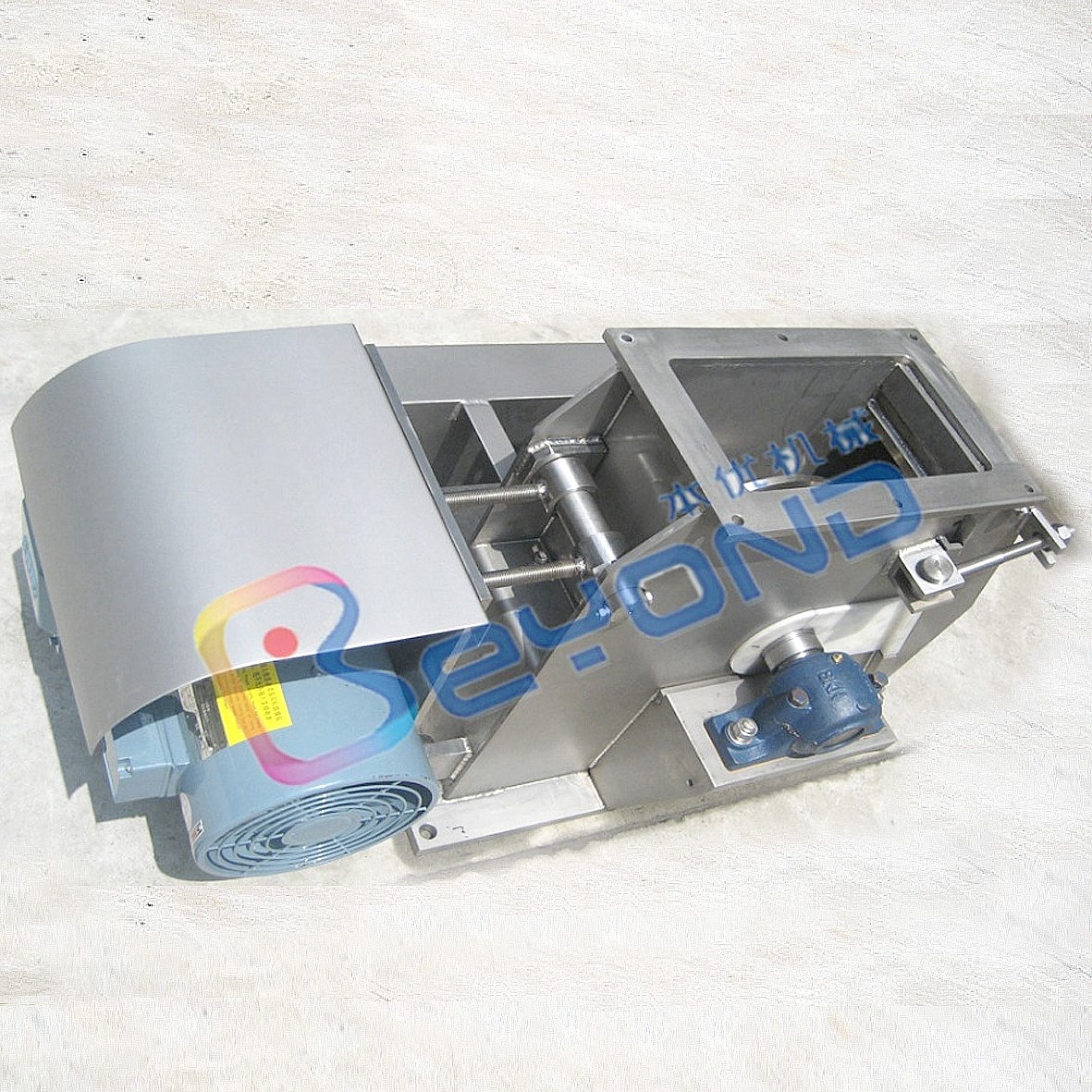

Hammer typer crusher for pulping fruits and vegetables

220V / 380V Voltage Fruit Processing Machine 2 - 10kw Power Hammer Type Crusher

• Equipment Characteristics

This machine is composed of side cover,swift knife,screen,main body,principal axis etc.the principal axis is regularly driven to circumvolve by a couple straps on running wheels; so the knives on the principal axis with circumvolve swiftly. When the fruits drop down to the feeding hopper from the lifer, they will be crushed by the swift knives; the crushed fruits will fly through the filter net on the drum to the storage groove under the centrifugal effect.

• Scope of application

Widely applied in crushing the fruit and the vegetables

• Equipment Advantages
The crushed materials are of the nearly same granularity,and its size is determined by the screen mesh of waist hole.
220V / 380V Voltage Fruit Processing Machine 2 - 10kw Power Hammer Type Crusher
.• Techinical parameters

(1)Model type:Hammer piece type crusher

Name	Descriptiopn	Processing Capacity	(LWH) External dimension(mm)	Suggested power (KW)
CPPSJ-2	All materias made of stainless steel SUS304	capacity:≤2(T/H)	995510565	3
CPPSJ-5		capacity:3~5(T/H)	1100580645	5.5
CPPSJ-10		capacity:6~10(T/H)	1300750645	7.5

(2)Model type:Hammer type crusher

Name	Description	Processing Capacity	Suggested Power(KW)
CPSJ-5	All materias made of stainless steel SUS304	≤5(T/H)	15
CPSJ-10		10(T/H)	18.5
CPSJ-20		20(T/H)	22
